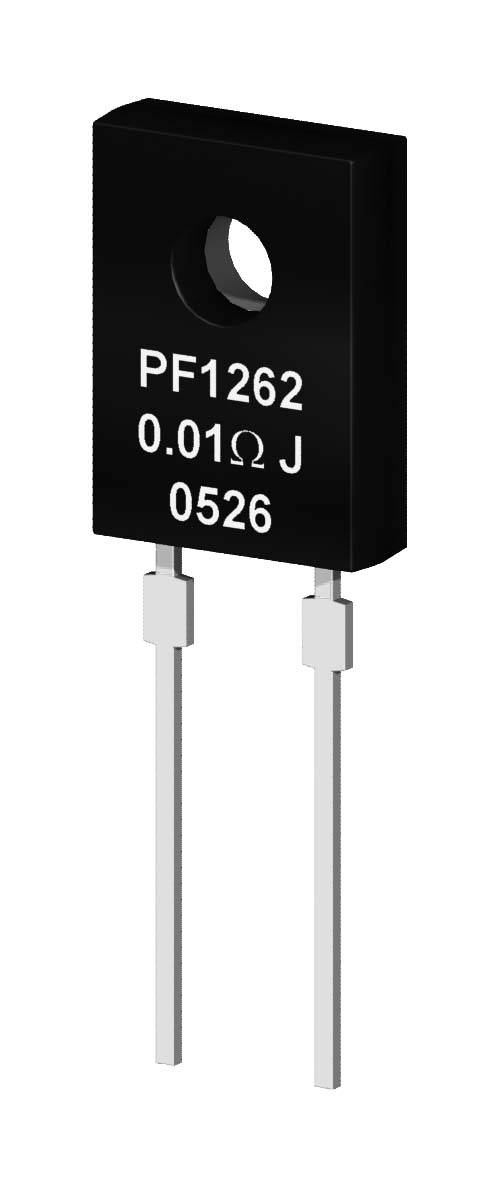

TO-126 Power Film Resistors

PF1262 Series

Not recommended for new designs.
End of Life 09/23/2022
Last time buy 12/31/2022

There is no replacement, please consider a different PF or Wirewound resistor

TO-126 Housing

Resistances from 0.02 to 51K Ohms

Power Rating to 20 Watts

Resistance Tolerances to ±1%

TCR to ±50ppm/C

Low Inductance (<50nH)

Isolated Back Plate

Type	Power Rating		Thermal Resistance	Resistance Range³		Tolerances	Temperature Coefficients
Type	Heatsink¹	Free Air²	Thermal Resistance	Min	Max	Tolerances	Temperature Coefficients
PF1262	20W	1W	5.9°C/W	0.02Ω	51KΩ	±1% (R≥10Ω), ±5%	±50ppm/°C (R ≥ 10Ω) ±100ppm/°C (0.1Ω ≤ R < 10Ω) ±250ppm/°C (R < 0.1Ω)
